Previously, we described the essentials of R programming and provided quick start guides for importing data into R.

Here, we'll describe how to create bar plots in R. The function barplot() can be used to create a bar plot with vertical or horizontal bars.

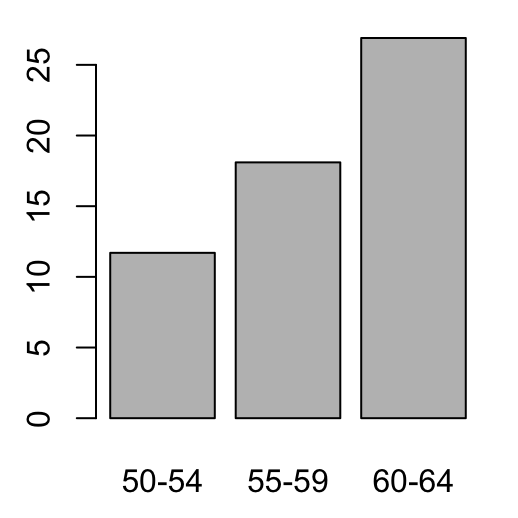

Basic bar plots

                  # Bar plot of one variable barplot(x) # Horizontal bar plot barplot(x, horiz = TRUE)

Change group names

                    barplot(x, names.arg = c("A", "B", "C"))

Change color

                    # Change border and fill color using one single color barplot(x, col = "white", border = "steelblue") # Change the color of border. #  Use different colors for each group barplot(x, col = "white",         border = c("#999999", "#E69F00", "#56B4E9")) # Change fill color : single color barplot(x, col = "steelblue") # Change fill color: multiple colors barplot(x, col = c("#999999", "#E69F00", "#56B4E9"))

Change main title and axis labels

                    # Change axis titles # Change color (col = "gray") and remove frame barplot(x, main = "Death Rates in Virginia",         xlab = "Age", ylab = "Rate")

Stacked bar plots

                  barplot(VADeaths,          col = c("lightblue", "mistyrose", "lightcyan",                   "lavender", "cornsilk"),         legend = rownames(VADeaths))

Grouped bar plots

                  barplot(VADeaths,          col = c("lightblue", "mistyrose", "lightcyan",                   "lavender", "cornsilk"),         legend = rownames(VADeaths), beside = TRUE)

It's also possible to add legends to a plot using the function legend() as follow.

                  # Define a set of colors my_colors <- c("lightblue", "mistyrose", "lightcyan",                   "lavender", "cornsilk") # Bar plot barplot(VADeaths, col = my_colors, beside = TRUE) # Add legend legend("topleft", legend = rownames(VADeaths),         fill = my_colors, box.lty = 0, cex = 0.8)

  • box.lty = 0: Remove the box around the legend
  • cex = 0.8: legend text size

Infos

This analysis has been performed using R statistical software (ver. 3.2.4).
